ClearLED Builds 31-Million-Pixel Curved LED Display for Bristol Research Lab
2026-10-13 · via invidis

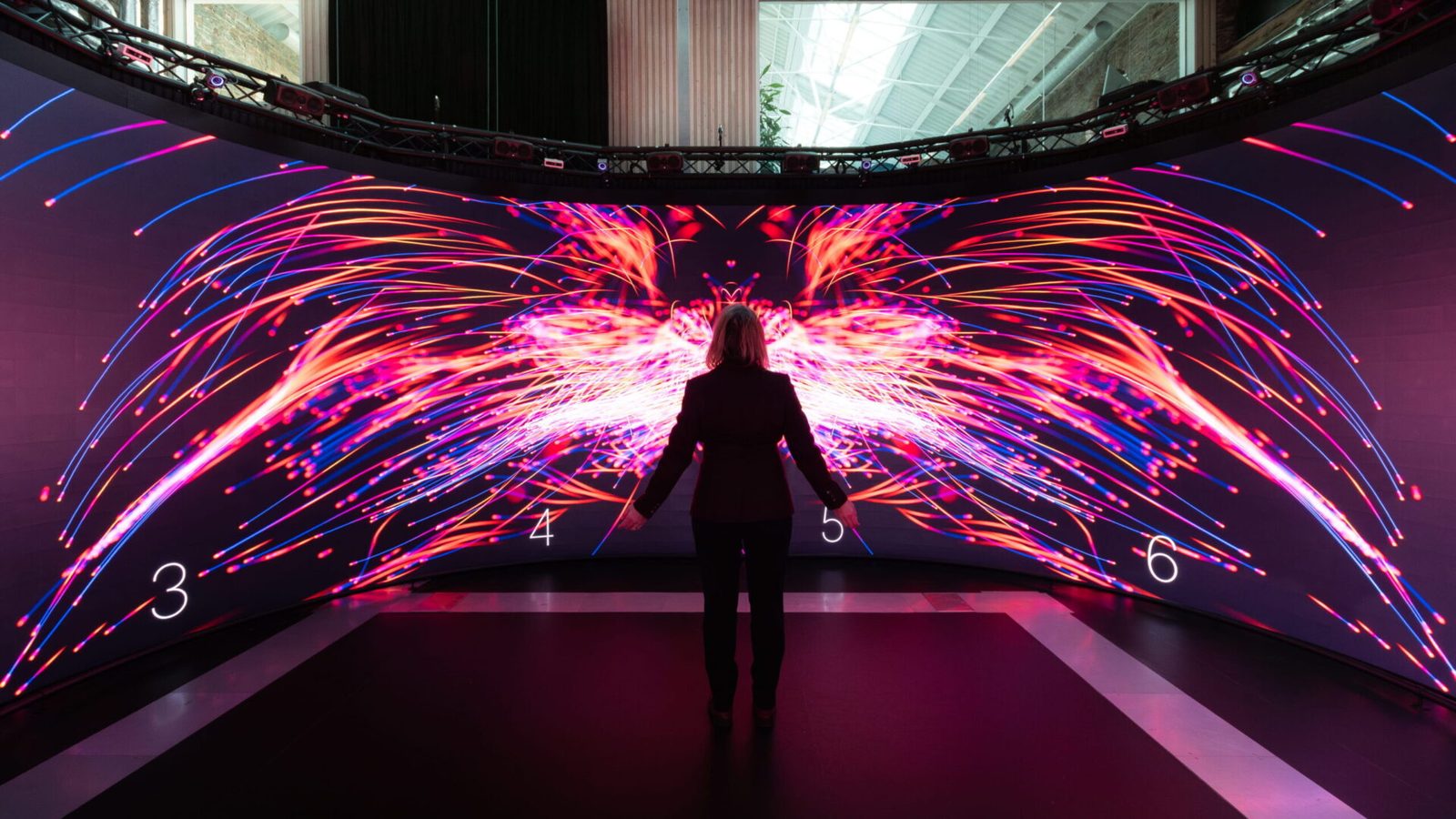

The University of Bristol's Digital Futures Institute has switched on a custom 360-degree LED installation built from 1,562 flexible modules, delivering roughly 31 million pixels across a continuous, egg-shaped surface. The display, called the Reality Emulator, was engineered by ClearLED with system integration from immersive visualization specialist Mechdyne.
For LED buyers watching the flexible-display category, this is a useful data point on where the technology is heading outside retail and events. ClearLED's Ribbon Series Indoor LED, at a 1.2mm pixel pitch, bends to follow the room's irregular geometry rather than forcing the room to accommodate flat cabinets. The design mixes curved sections that wrap into peripheral vision with flatter zones reserved for engineering data and models that need to stay undistorted. That combination of curved and flat within a single continuous surface is the kind of job that standard rigid cabinets cannot do without visible seams or structural workarounds.
The technical specs point to a system built for more than static content. ClearLED says the modules run a 7,680Hz PWM refresh rate and operate at 120Hz for stereoscopic 3D, delivering 60Hz per eye through synchronized shutter glasses. Eye tracking, motion tracking and real-time game-engine rendering let the visuals respond to where users are standing and looking, which is a different performance bar than most digital signage deployments require. The modules also use glue-on-board protection and flip-chip LEDs, features ClearLED positions as improving durability, thermal management and energy efficiency, claims aimed at long-duty-cycle installations like this one rather than short ad loops.
Mechdyne built the overall system architecture and assembled and tested the complete display at its technology center in Iowa before shipping it to Bristol, where it now runs alongside a high-performance computing platform for digital-twin calculations and a graphics cluster for rendering. The university says the facility is being used for emergency response training, urban planning, architectural design and AI research, letting researchers put people into scenarios that would be risky or impossible to stage in the real world.
What the announcement does not say is cost, project timeline, or whether ClearLED and Mechdyne plan to offer a packaged version of this architecture for other institutional or corporate buyers. For a trade audience, the install is a reminder that flexible LED and curved-surface engineering, the same underlying technology used in some immersive retail and experiential signage projects, is also finding a home in research and simulation markets where interactivity and tracking matter as much as pixel density.
The announcement in full
Reproduced from invidis for reference. Digital Signage Magazine did not write the text below.
A custom 31-million-pixel LED display comprising 1,562 flexible modules creates an immersive research environment at the University of Bristol.
The University of Bristol’s Digital Futures Institute (BDFI) has installed a custom 360-degree LED display as part of its Reality Emulator, an immersive research environment designed to visualize complex datasets, simulations and virtual worlds.
Developed by ClearLED in collaboration with immersive visualization specialist Mechdyne, the installation uses 1,562 flexible LED modules to create a continuous, egg-shaped display containing approximately 31 million pixels.
The Reality Emulator allows researchers to explore digital environments at room scale, supporting applications ranging from emergency response training and urban planning to architectural design and artificial intelligence research.
The installation uses ClearLED’s Ribbon Series Indoor LED technology with a 1.2 mm pixel pitch. Unlike conventional flat LED cabinets, the flexible modules can form curved surfaces, meaning the display can follow the room’s unusual geometry.
The design combines curved sections that extend into users’ peripheral vision with flatter areas for presenting engineering data and models without distortion.
Mechdyne developed the overall system architecture, while ClearLED engineered the display technology and supporting structure.
The LED display features a 7,680 Hz pulse-width modulation (PWM) refresh rate and operates at 120 Hz for stereoscopic 3D visualization.
When used with synchronized shutter glasses, the system delivers 60 Hz to each eye, creating a sense of depth within the virtual environment.
Eye tracking, motion tracking, and real-time game-engine rendering allow the displayed content to respond to users’ positions and movements.
The modules also incorporate glue-on-board (GOB) protection and flip-chip LED technology to improve durability, thermal performance and energy efficiency.
Mechdyne assembled and tested the complete display system at its technology center in Iowa before shipping it to Bristol.
A high-performance computing platform handles digital-twin calculations, while a graphics cluster generates the visual content displayed across the LED installation.
The Reality Emulator is now being used for research involving game-engine technology, AI and interactive simulations.
You are currently viewing a placeholder content from YouTube . To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
“We wanted to take people into new places, new situations – potentially dangerous situations that you wouldn’t be able to put human participants into,” said Dr. Richard Cole, senior lecturer in digital futures at the University of Bristol. “This environment is influencing how I think and to imagine new ways of using technology.
The facility enables researchers to test scenarios and examine how people interact with complex digital environments without exposing participants to real-world risks.
